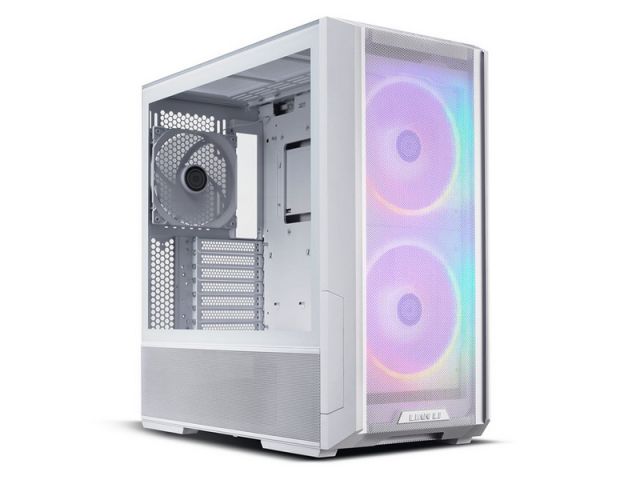

LANCOOL 216 - AIRFLOW FOCUS
The LANCOOL 216 is a mainstream case that features all-around mesh panels for optimal airflow. Thanks to its modular rear panel, it can be optimized for air cooling or water cooling. It includes 2 x 160mm and 1 x 140mm pre-installed PWM fans and an innovative rear PCIe fan bracket to maximize airflow.

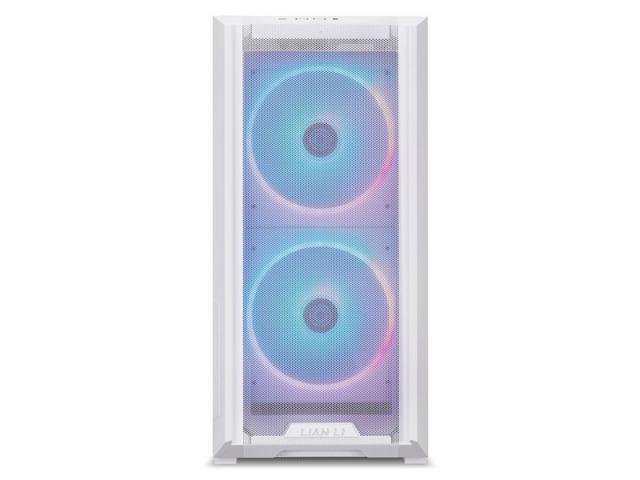

CONTINUOUS FRONT TO TOP MESH
To ensure adequate airflow is provided to the system, the LANCOOL 216 features mesh at the front, top, and on the PSU shroud’s side*. The front mesh extends to the top for a continuous mesh panel.

LANCOOL 216 RGB FANS
The included 160mm ARGB fans feature two channels of LEDs (one on the outer rim of the fan, another at the shaft of the fan blades) that can be controlled separately via an optional accessory, or via the motherboard lighting software by connecting them directly to a motherboard 5V 3pin header. Located in the second chamber behind the motherboard, a SATA-powered fan hub can support up to 4x ARGB and PWM fans.

AIR COOLING MODE / WATER COOLING MODE
The modular motherboard I/O allow users to move the motherboard to a higher position which is more favorable for air-cooled systems, or a lower position for water-cooled systems.

FRONT I/O CAN BE RELOCATED
Including a power button, reset button, audio port, 2x USB3.0 ports, and a USB Type C port, the front I/O module can be relocated to the lower left side of the front panel.

HARDWARE COMPATIBILITY
The LANCOOL 216 supports ATX, Micro-ATX, MINI-ITX motherboards, and E-ATX under 280mm in width (when the grommet bar is flipped 180°). In addition, thanks to its symmetrical design, cable management in the 2nd chamber remains unaffected.

LATEST GEN. GPU READY
With enough room for graphics cards up to 392mm in length, and 180mm in height (for air cooling mode), the LANCOOL 216 is compatible with even the largest NVIDIA 4000 series cards.

REMOVEABLE TOP RADIATOR BRACKET
The top mounting bracket can be completely removed from the case for easier hardware installation. The bracket comes off with the left side frame bar to provide optimal clearance. Two grooves have been implemented to allow easy passage of fan cables into the second chamber of the case, simplifying cable management and making the overall look of the build better.

PCIE FAN BRACKET
The GPU placed at the top of the expansion slots in air cooling mode opens up the possibility to add a 120mm fan at the rear of the case without obstructing the GPU I/O. This is also possible with a vertically mounted GPU in both air-cooled and water-cooled mode. The additional 120mm fan provides better cooling for the GPU and a greater intake/exhaust balance for the system.

VERTICAL GPU COMPATIBLE
The PCIe expansion slot panel can be rotated to vertically install the GPUs, only an additional riser cable is required.

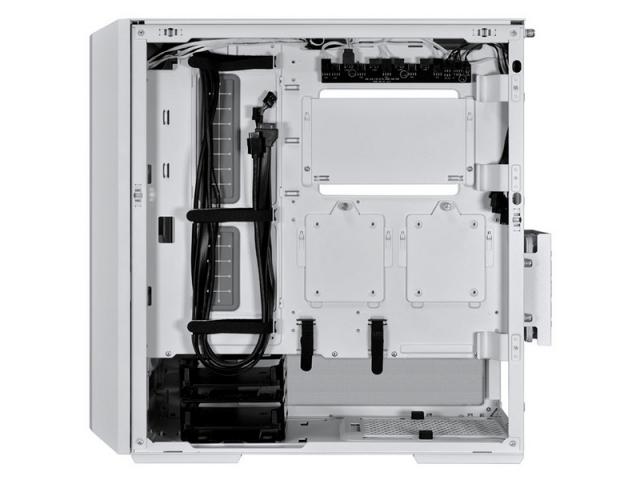

CABLE MANAGEMENT
The LANCOOL 216 offers multiple options for easy cable management. Along the cable grommet bar, 3 large velcro straps can hold 2 different sets of cables. 3 small clips are located along the rear side panel, ideal for cleanly routing the CPU 8pin cable, and 2 additional velcro straps are located near the PSU chamber to help hold down the extra PSU cable length away from the ventilation path in the bottom chamber.

SPECIFICATIONS
DIMENSIONS: (D) 480.9mm x (W) 235mm x (H) 491.7mm
COLOR: White
MATERIAL: Steel / 4.0mm Tempered Glass
MOTHERBOARD SUPPORT: E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
FAN SUPPORT: Top: 3 x 120mm / 2 x 140mm, PSU Cover: 2 x 120mm / 2 x 140mm (Air Cooling mode), Front: 3 x 120mm / 2 x 140mm / 2 x 160mm, Rear: 1 x 120mm / 1 x 140mm (Not compatible with UNI FAN SL-INF 140), PCIe Fan Bracket: 1 x 120mm
RADIATOR SUPPORT: Front: 360 / 280 / 240mm, Top: 360 / 280 / 240mm, Bottom: 240mm
PSU SUPPORT LENGTH: ATX (Under 220mm)
GPU LENGTH CLEARANCE: 392mm (max)
CPU COOLER HEIGHT CLEARANCE: 180.5mm (max)
DRIVE: Drive Cage:2 x 2.5” SSD + 2 x 3.5” HDD, PSU Cover:2 x 2.5” SSD, Behind MB tray: 2 x 2.5” SSD
EXPANSION SLOT: 7
I/O PORTS: 1 x Power Button, 1 x Reset Button, 2 x USB 3.0, 1 x USB Type C, 1 x Audio
INCLUDED FANS: Front: 2 x 160mm ARGB Fans, Rear: 1 x 140mm PWM Fan
DUST FILTERS: 1 x Bottom
